Ethernet Controlled Remote Broadband Switch: DCR-8E

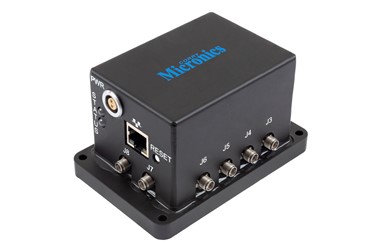

Corry Micronics offers the DCR-8E eight port reflected switch designed to be remotely controlled via Ethernet to a laptop or PC. This standard broadband switch has an operating frequency of 20 MHz to 18 GHz with an insertion loss of only 4 dB, and offers excellent port-to-port isolation of a minimum of 80 dB. The DCR-8E can be custom designed for customer specific bandwidths and switching port applications.

The DCR-8E is bi-directional and provides the flexibility to install the switch as a single input and eight outputs or as eight inputs with a single output. The switch system comes with installed drivers and easy to follow programming instructions.

Additional DCR-8E features include:

  • VSWR: 2.0:1
  • Power: Unregulated 9 ~ 18 VDC
  • I/O Impedance: 50 Ohms
  • Operating Temperature: 0°- ~ 70° C
  • Dimensions: 2.25” W x 2.1” D x 4” L
  • Connector type: SMA- Female
  • Operating Power: 23 dBm

For additional specifications and operational parameters, download the datasheet.
